lej-de

Universitat Leipzig

Leipzig, DE (2)

To main statistics page

All images can be clicked on for more detailed information.

Median RTT per country and US state

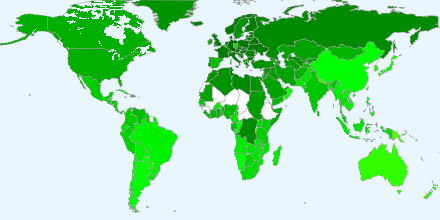

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state


Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

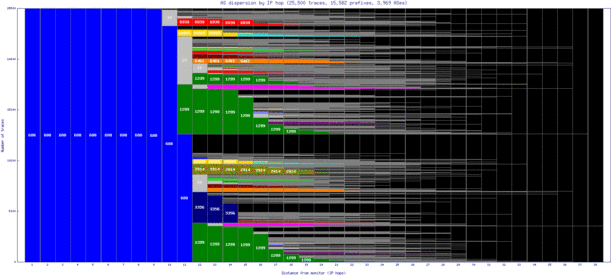

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

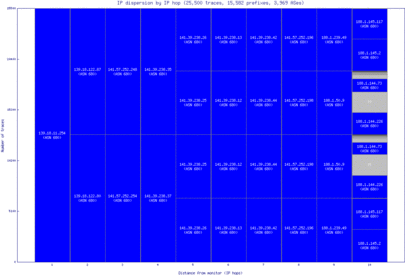

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

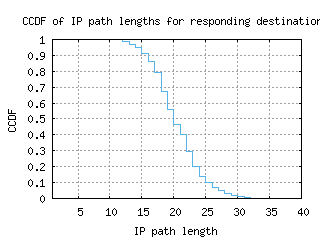

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	10	13	15	17	20	33


• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	3	3	4	5	5	12

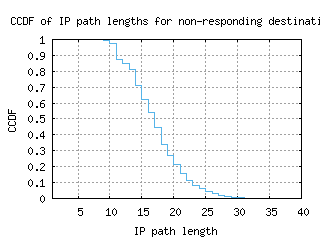

• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	7	9	12	15	18	38

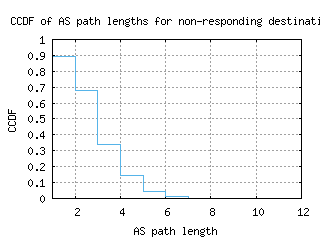

• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	2	3	3	4	5	13



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	49.880	103.860	209.231	345.385	541.444

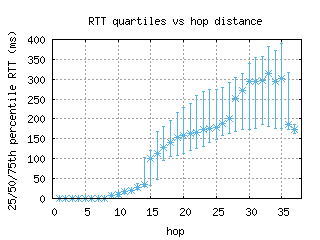

• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

• RTT quartiles versus geographical distance
