| Time range | 2013-05-01 16:10 to 2013-05-03 12:48 UTC (1 day 21 hours) (3 days ago) |
| Total traces | 451459 |
| Traces with responding destinations | 54078 (11.978%) |
| ASes with responding destinations | 4038 (24.637% out of 16390) |
| Prefixes with responding destinations | 18859 (21.444% out of 87944) |
| Protocol version | v4 |
Generated for cycle 2502 on 2013-05-04 18:01 UTC
All images can be clicked on for more detailed information.
Median RTT per country and US state
Mapping RTT by political boundaries can reveal where high latency issues are located.
-
Median RTT per country and US state
Path Dispersion
The paths taken by different traces show where the majority of a monitor's traffic travels.
-
AS Path Dispersion (by AS Hop)
AS connectivity near monitor
-

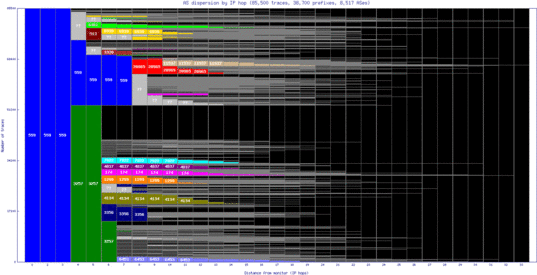

AS Path Dispersion (by IP Hop)
AS connectivity near monitor (with IP hop distances preserved)
-
IP Path Dispersion (by IP Hop)
IP connectivity near monitor
Path Length Distributions
Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.
-
CCDF of IP path lengths for responding destinations
percentile 10th 25th 50th 75th 90th Max IP path length 15 17 18 21 24 37
-

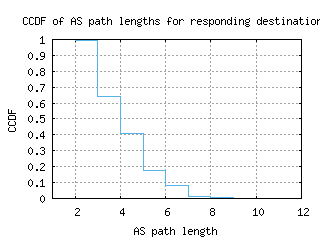

CCDF of AS path lengths for responding destinations
percentile 10th 25th 50th 75th 90th Max AS path length 3 3 4 5 6 11
-
CCDF of IP path lengths for non-responding destinations
percentile 10th 25th 50th 75th 90th Max IP path length 11 13 16 19 22 41
-

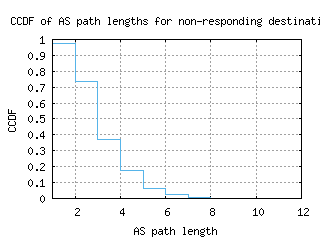

CCDF of AS path lengths for non-responding destinations
percentile 10th 25th 50th 75th 90th Max AS path length 2 3 4 4 5 12
-
CCDF of destination RTTs
percentile 10th 25th 50th 75th 90th RTT (ms) 44.265 96.772 196.239 326.916 535.317
-

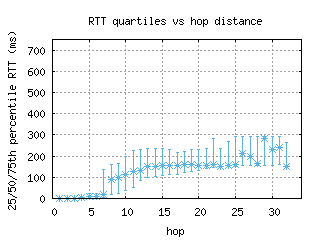

RTT quartiles vs hop distance
-

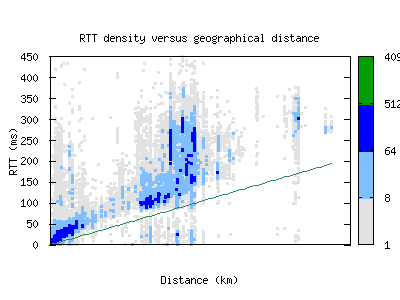

RTT density versus geographical distance
-

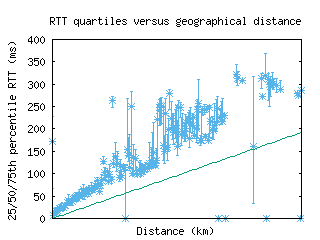

RTT quartiles versus geographical distance
