Archipelago Monitor Statistics

Archipelago (Ark): CAIDA's active measurement infrastructure serving the network research community since 2007.
Statistical information for the topology traces taken by this individual Ark monitor is displayed below. See the main statistics page for the full list of monitors

---

Prev monitor: ams-nl
Prev in NL: ams-nl
Prev in Europe: ams-nl

Next monitor: ams3-nl
Next in NL: ams3-nl
Next in Europe: ams3-nl

To main statistics page

ams2-nl

AMS-IX
Amsterdam, NL (7)
IPv6 data used (switch to IPv4)

Time range	2021-07-16 13:39 to 2021-07-17 08:06 UTC (18 hours) (1013 days ago)
Total traces	260010
Traces with responding destinations	25433 (9.782%)
ASes with responding destinations	8437 (31.787% out of 26542)
Prefixes with responding destinations	22185 (17.950% out of 123595)
Protocol version	v6 (switch to v4)

Generated for cycle 296 on 2021-07-17 11:20 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state


Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

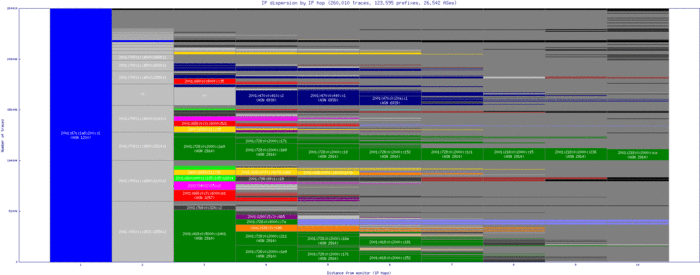

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	5	6	9	12	15	34


• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	4	4	5	6	7	12


• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	5	7	10	13	17	45


• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	3	4	5	5	6	15



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	8.927	32.429	129.534	202.751	247.154


• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

• RTT quartiles versus geographical distance
