Archipelago Monitor Statistics

Archipelago (Ark): CAIDA's active measurement infrastructure serving the network research community since 2007.
Statistical information for the topology traces taken by this individual Ark monitor is displayed below. See the main statistics page for the full list of monitors

---

Prev monitor: ams3-nl
Prev in NL: ams3-nl
Prev in Europe: ams3-nl

Next monitor: ams7-nl
Next in NL: ams7-nl
Next in Europe: ams7-nl

To main statistics page

ams5-nl

Liberty Global
Amsterdam, NL (12)
IPv6 data used (switch to IPv4)

Time range	2025-12-28 05:43 to 2025-12-29 14:51 UTC (1 day 9 hours) (1 day ago)
Total traces	478760
Traces with responding destinations	46257 (9.662%)
ASes with responding destinations	11806 (33.082% out of 35687)
Prefixes with responding destinations	40483 (17.374% out of 233009)
Protocol version	v6 (switch to v4)

Generated for cycle 20251228 on 2025-12-30 09:17 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state

Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	6	8	10	13	15	30

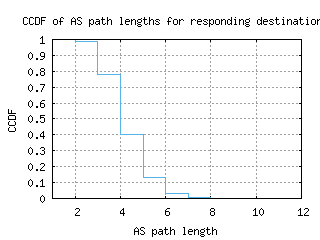

• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	3	4	4	5	6	11


• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	3	6	9	12	16	161


• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	1	2	3	5	5	11



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	8.266	32.846	129.415	199.111	257.194


• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

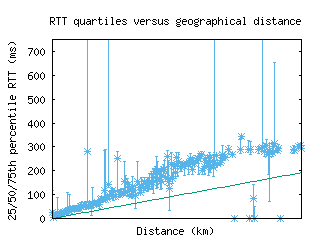

• RTT quartiles versus geographical distance
