Archipelago Monitor Statistics

Archipelago (Ark): CAIDA's active measurement infrastructure serving the network research community since 2007.
Statistical information for the topology traces taken by this individual Ark monitor is displayed below. See the main statistics page for the full list of monitors

---

Prev monitor: gva-ch
Prev in South America: gru5-br

Next monitor: ham-de
Next in South America: med-co

To main statistics page

gye-ec

CEDIA
Guayaquil, EC
IPv6 data used (switch to IPv4)

Time range	2026-06-20 21:53 to 2026-06-22 16:46 UTC (1 day 19 hours) (1 day ago)
Total traces	503104
Traces with responding destinations	49599 (9.859%)
ASes with responding destinations	12759 (34.946% out of 36511)
Prefixes with responding destinations	43289 (17.764% out of 243691)
Protocol version	v6 (switch to v4)

Generated for cycle 20260620 on 2026-06-23 09:54 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state

Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

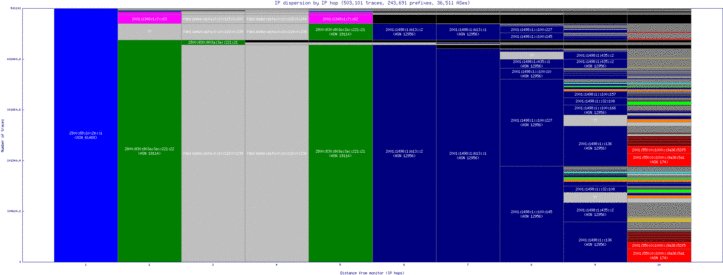

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	12	13	16	19	21	36


• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	5	5	6	7	8	12


• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	9	12	15	19	22	209


• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	3	4	5	6	7	14



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	99.434	125.919	179.543	233.264	320.466


• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

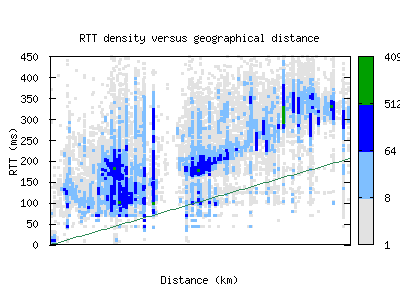

• RTT density versus geographical distance

• RTT quartiles versus geographical distance
