nrn-nl

SIDN Labs
Arnhem, NL (8)
IPv4 data used (switch to IPv6)

Time range	2024-04-14 18:11 to 2024-04-15 02:25 UTC (8 hours) (1 day ago)
Total traces	78000
Traces with responding destinations	9003 (11.542%)
ASes with responding destinations	1390 (17.127% out of 8116)
Prefixes with responding destinations	5544 (15.318% out of 36192)
Protocol version	v4 (switch to v6)

Generated for cycle 11448 on 2024-04-16 13:16 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state


Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

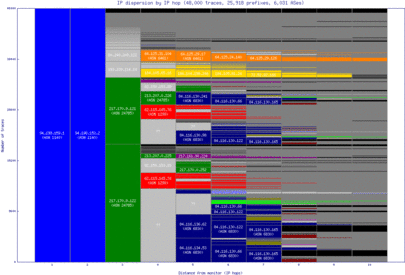

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	8	10	14	16	19	36

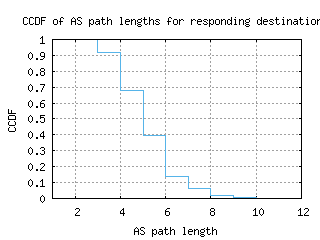

• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	4	4	5	6	7	12


• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	5	7	9	13	15	36


• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	3	3	4	5	6	11



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	21.601	48.826	137.484	224.559	274.761


• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

• RTT quartiles versus geographical distance
