Archipelago Monitor Statistics

Archipelago (Ark): CAIDA's active measurement infrastructure serving the network research community since 2007.
Statistical information for the topology traces taken by this individual Ark monitor is displayed below. See the main statistics page for the full list of monitors

---

Prev monitor: okc2-us
Prev in US: okc2-us
Prev in North America: okc2-us

Next monitor: ord2-us
Next in US: ord2-us
Next in North America: ord2-us

To main statistics page

ord-us

DePaul University
Chicago, US (122)
IPv6 data used (switch to IPv4)

Time range	2025-09-12 07:45 to 2025-09-13 19:09 UTC (1 day 11 hours) (1 day ago)
Total traces	461918
Traces with responding destinations	32812 (7.103%)
ASes with responding destinations	8551 (24.277% out of 35222)
Prefixes with responding destinations	28856 (12.878% out of 224079)
Protocol version	v6 (switch to v4)

Generated for cycle 20250912 on 2025-09-14 09:55 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state

Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

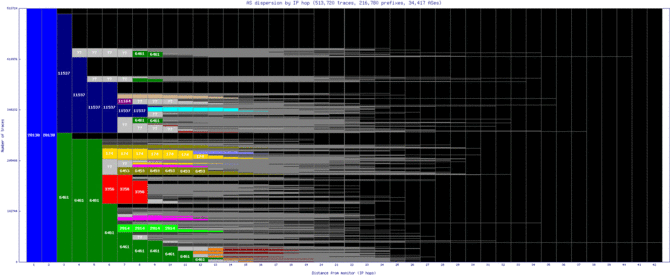

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

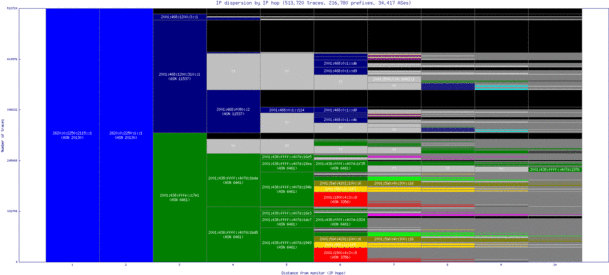

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

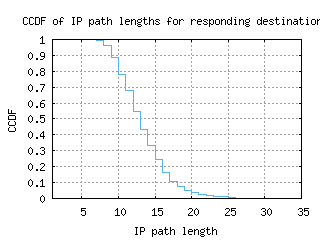

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	10	12	14	16	18	32

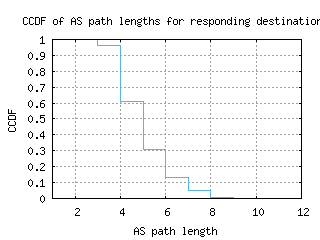

• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	4	4	5	6	7	14

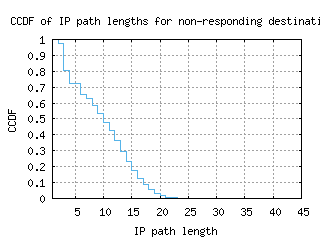

• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	3	4	11	14	17	40

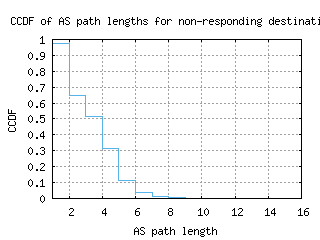

• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	2	2	3	4	5	14



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

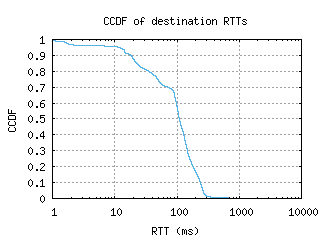

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	16.254	39.285	99.262	143.294	218.195


• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

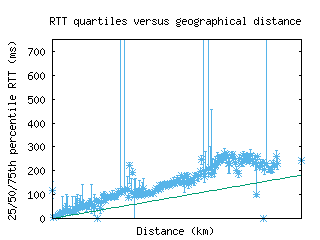

• RTT quartiles versus geographical distance
