Archipelago Monitor Statistics
Archipelago (Ark): CAIDA's active measurement infrastructure serving the network research community since 2007.
Statistical information for the topology traces taken by this individual Ark monitor is displayed below. See the main statistics page for the full list of monitors
To main statistics page
| Time range | 2022-05-14 00:42 to 12:53 UTC (12 hours) (13 days ago) |
| Total traces | 111000 |
| Traces with responding destinations | 14372 (12.948%) |
| ASes with responding destinations | 1900 (19.543% out of 9722) |
| Prefixes with responding destinations | 7836 (17.388% out of 45066) |
| Protocol version | v4 |
Generated for cycle 10044 on 2022-05-17 13:34 UTC
All images can be clicked on for more detailed information.
Median RTT per country and US state
Mapping RTT by political boundaries can reveal where high latency issues are located.
-
Median RTT per country and US state
Path Dispersion
The paths taken by different traces show where the majority of a monitor's traffic travels.
-
AS Path Dispersion (by AS Hop)
AS connectivity near monitor
-
AS Path Dispersion (by IP Hop)
AS connectivity near monitor (with IP hop distances preserved)
-
IP Path Dispersion (by IP Hop)
IP connectivity near monitor
Path Length Distributions
Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.
-
CCDF of IP path lengths for responding destinations
percentile 10th 25th 50th 75th 90th Max IP path length 11 14 16 19 23 37
-
CCDF of AS path lengths for responding destinations
percentile 10th 25th 50th 75th 90th Max AS path length 6 7 7 8 9 14
-
CCDF of IP path lengths for non-responding destinations
percentile 10th 25th 50th 75th 90th Max IP path length 9 12 14 17 20 39
-
CCDF of AS path lengths for non-responding destinations
percentile 10th 25th 50th 75th 90th Max AS path length 4 6 7 7 8 14
-
CCDF of destination RTTs
percentile 10th 25th 50th 75th 90th RTT (ms) 172.444 192.374 221.563 301.510 327.652
-

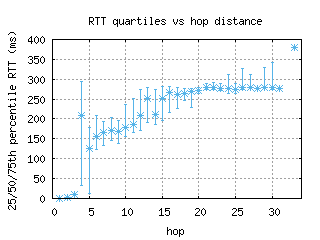

RTT quartiles vs hop distance
-
RTT density versus geographical distance
-
RTT quartiles versus geographical distance
