zrh-ch

University of Zurich
Zurich, CH (5)
IPv6 data used (switch to IPv4)

Time range	2024-07-31 04:26 to 2024-08-01 14:11 UTC (1 day 10 hours) (271 days ago)
Total traces	469302
Traces with responding destinations	41823 (8.912%)
ASes with responding destinations	11079 (33.275% out of 33295)
Prefixes with responding destinations	34904 (17.025% out of 205018)
Protocol version	v6 (switch to v4)

Generated for cycle 20240731 on 2024-08-02 08:50 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state

Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	8	10	12	15	18	43


• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	3	4	4	5	6	11


• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	5	8	12	14	17	43


• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	2	3	4	5	6	13



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	15.847	36.174	132.809	190.710	239.527

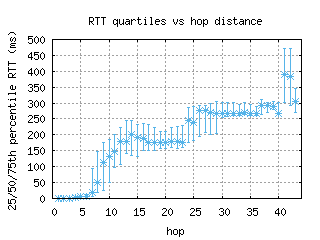

• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

• RTT quartiles versus geographical distance
