Archipelago (Ark): CAIDA's active measurement infrastructure serving the network research community since 2007.

|   Ark Monitors:    Hosting an Ark Monitor    Locations    Data Coverage    Statistics   |

per-au

AARNet

Perth, AU (6)

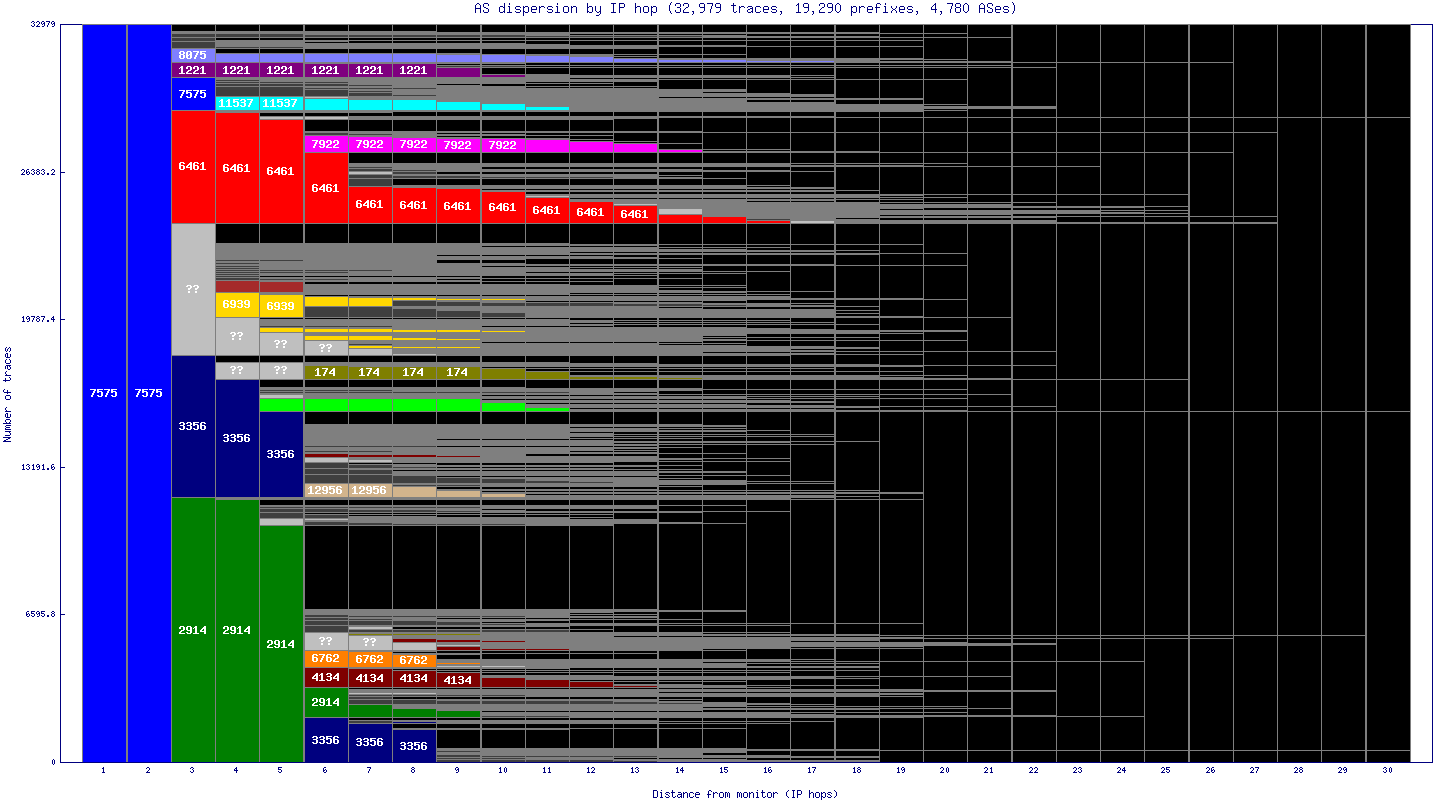

AS Path Dispersion (by IP Hop)

Use the following link to download the data used to render this graph in ASCII, comma-separated values format here: (CSV output)

Uses

This graph tells you more (compared to the AS Dispersion by AS Hop graph) about where different ASes transit data to their peers. For instance, some routers within an AS will pass off their packets to many other ASes at a single IP hop, whereas others will send some packets to different ASes but continue to move data within their own AS. It is useful to compare these results with the hosting organization's information about what ASes are providing transit for your data, to see whether it matches what the Ark probes have discovered.

Caveats

It is important to recognize that these graphs are meant to illuminate the routing from a monitor, and not to show the volume of traffic normally flowing on the links or their bandwidth. Because of this, an AS/IP that might only be used for a small amount of actual traffic (but routes to a large section of the address space) can seem disproportionately large on the graph.

Characteristics of this graph

In this graph, we show the AS-level path dispersion, but adjacent IP hops within the same AS are not aggregated. It is characterized by AS chains that seems to break apart as one moves to the right; often a portion of paths will leave an AS at a certain IP hop distance and move on to a variety of other ASes, but the rest will remain within that AS for another hop or two (or ten) before finally exiting that AS. This lends the graph a step-like quality.

Background

(See the Routed /24 Topology Dataset for more information. This summary applies to all the dispersion graphs.)
Ark monitors collect data by sending scamper probes continuously to destination IP addresses. Destinations are selected randomly from each routed IPv4 /24 prefix on the Internet such that a random address in each prefix is probed approximately every 48 hours (one probing cycle). A single monitor won't probe all prefixes, but the prefixes it does probe will be randomly distributed, which gives a good sample cross section of the address space. As each probe travels from the monitor to its final destination, it passes through several IP addresses (ie, routers) which are owned by different autonomous systems (ASes).

How This Graph was Created

(This applies to all the dispersion graphs.)

Data Processing

We first take the IP addresses found in each path and look up its corresponding AS, creating a set of AS paths. We use heuristics to infer any unknown values in the IP and AS paths. First, any range of unknown ASes whose previous and following hops have the same value are all assumed to be within the same AS.
For example:
10 ?? ?? ?? 10
becomes
10 10 10 10 10
If there exists only one other known value between two neighboring values, the unknown hop is assigned that value. This can often happen when a router gives inconsistent responses, leaving an unknown hop some times and returning valid data at other times.
For example, say there are only three paths:
10 20 30 40 50
10 20 30 42 52
10 ?? 30 45 55
From this, we infer the unknown hop in the third path, and end up with:
10 20 30 40 50
10 20 30 42 52
10 20 30 45 55

Graph Generation

Then, we merge all the paths together into a tree structure to show how they disperse from the monitor as they go to their destinations. Each column is broken into smaller column sections based on the size of the previous hop. The Y axis represents the number of probe paths that go through a particular IP address or AS. The graph we create is a tree (as opposed to the actual network, where multiple paths can reconverge after diverging earlier), which allows IPs and ASes to show up several times within the same column.

Coloring

Non-grayscale colors are assigned to the ASes that show up the most, which are typically early in a path. Less numerous ASes are assigned a dark grey, whereas black is used to denote hops after the end of a particular path. Any hops with an unknown IP or AS are denoted with '??' and are colored a lighter grey.

This kind of dispersion graph originated as a Skitter visualization (see section V.C).
