sin-sg

DCS1 Pte Ltd

Singapore, SG (3)

IPv6 data used (switch to IPv4)

Time range	2018-02-13 17:37 to 2018-02-14 04:05 UTC (10 hours) (639 days ago)
Total traces	102403
Traces with responding destinations	12460 (12.168%)
ASes with responding destinations	4415 (32.009% out of 13793)
Prefixes with responding destinations	10223 (23.611% out of 43297)
Protocol version	v6 (switch to v4)

Generated for cycle 89424 on 2018-08-27 23:28 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state


Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

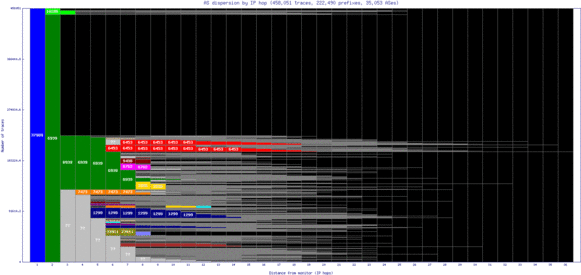

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	10	11	13	16	18	29


• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	5	6	7	8	9	13

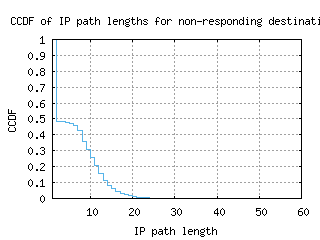

• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	2	9	12	15	18	36

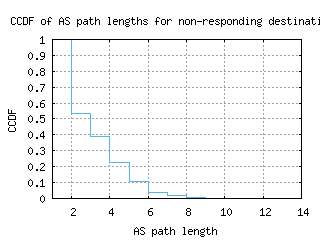

• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	1	5	6	7	8	14



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	161.555	189.096	223.963	272.668	364.716

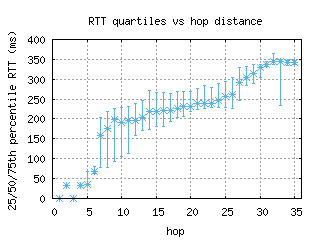

• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

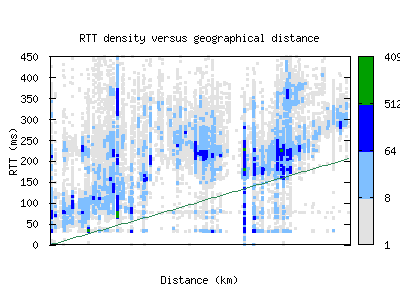

• RTT density versus geographical distance

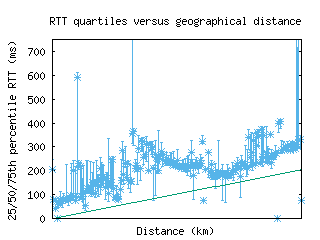

• RTT quartiles versus geographical distance
