Archipelago Monitor Statistics

Archipelago (Ark): CAIDA's active measurement infrastructure serving the network research community since 2007.
Statistical information for the topology traces taken by this individual Ark monitor is displayed below. See the main statistics page for the full list of monitors

---

Prev monitor: waw-pl
Prev in US: tul2-us
Prev in North America: tul2-us

Next monitor: wlg-nz
Next in US: wvi2-us
Next in North America: wvi2-us

To main statistics page

wbu-us

NCAR
Boulder, CO, US (69)
IPv4 data used (switch to IPv6)

Time range	2024-04-17 22:33 to 2024-04-18 07:03 UTC (9 hours) (1 day ago)
Total traces	90000
Traces with responding destinations	10294 (11.438%)
ASes with responding destinations	1564 (17.797% out of 8788)
Prefixes with responding destinations	6231 (15.514% out of 40164)
Protocol version	v4 (switch to v6)

Generated for cycle 11457 on 2024-04-19 13:43 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

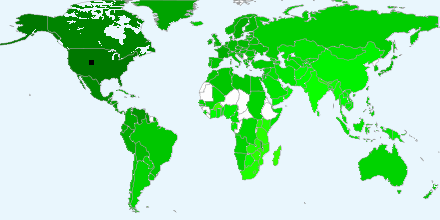

• Median RTT per country and US state


Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

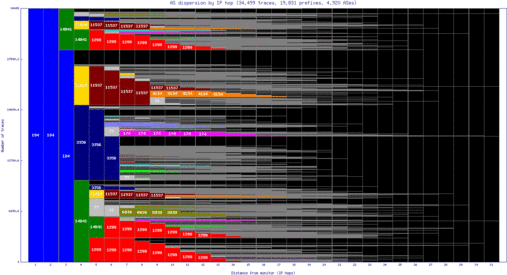

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

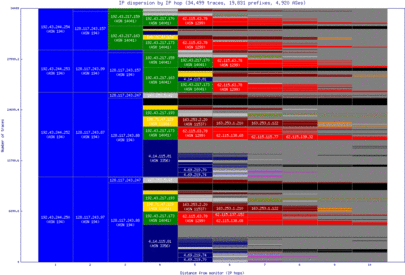

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	8	10	13	16	19	30

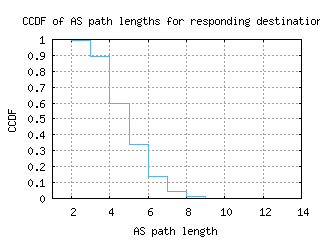

• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	3	4	5	6	6	11

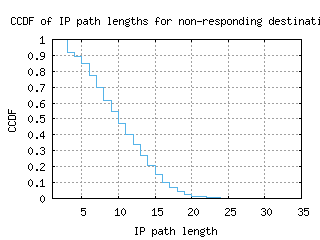

• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	3	6	9	13	16	30

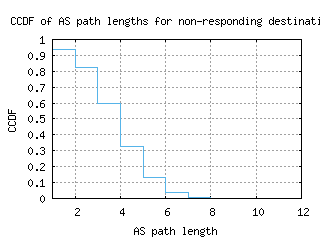

• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	2	3	4	5	5	13



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	42.180	64.728	149.127	187.030	254.591


• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

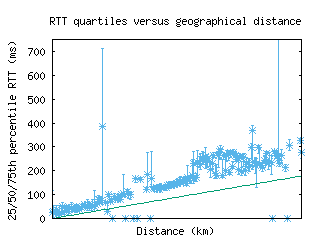

• RTT quartiles versus geographical distance
