Comparison of end-to-end
distance metrics

Bradley Huffaker
CAIDA, SDSC, UC San Diego bradley@caida.org

ISMA, Routing and Topology Analysis, December 2001

Overview

• methodology

• metrics

• success rate

• conclusion

background

• skitter project (data collection): IP forward path topology and RTT
• methodology: scoring the rate at which a metric can successfully predict low RTT

skitter project

• monitors
  • trace = forward IP path and RTT between monitor and destination
  • cycle = a single run launching traces to the entire destination list
• destination lists
  • DNS clients
    • one DNS client per prefix
    • 53% of prefixes
    • 8 to 14 cycles per day
  • IPv4 list
    • one IP address per /24 in routable prefix
    • 54% of prefixes and 5.7% of /24s
    • 1 cycle per day

methodology

• scoring the ability of different metrics to correctly
• select servers with the lowest RTT
  • client: IP trying to select best (IP) from a set of servers
  • server: server (IP address) offering desired service
• caida monitors are client and destinations are servers
• allows different metrics to be compared on the basis
• of a single valuet>

evaluation algorithm>

if (rttA == rttB || serverA == serverB)
    throw out this data point
elsif (metricA == metricB)
    unusable++   # no predictive value
elsif (((metricA < metricB) && (rttA < rttB))
  || ((metricA > metricB) && (rttA > rttB)))
    successful++;
else
    failures++;

metrics

• IP path Length: lowest TTL for request to which the destination responsed
• AS path length: number of times the AS changed in an AS path
• geographic distance: great circle distance from source to destination
• median RTT: median RTT from previous day

IP path length

• how to estimate without probing?
  • shortest path in a shared IP topology
  • collected by global infrastructure
• study
  • lowest TTL which got a response

AS path length

• how to estimate without probing?
  • collect BGP tables that store AS paths
  • requires only a single connection to a local router (no burden on wider infrastructure)
• study
  • > no BGP table at most monitors
  • abstracted AS path from IP path (using routeviews BGP tables)
  • AS path length = number of times AS changed in the path

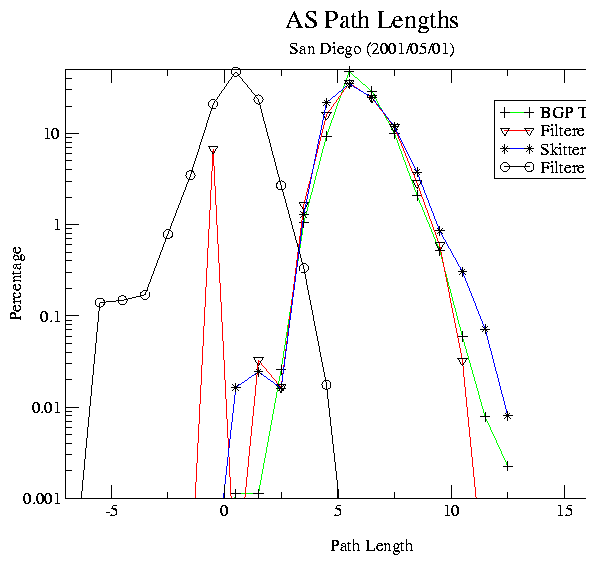

skitter's AS path length vs BGP's AS path length

• Negative spike for Filtered BGP Table indicates no matches
• Filtered - Skitter is the curve for the difference between AS path seen by Skitter and that in the BGP table

geographic distance

• great circle distance between geographic locations of destination and monitor
• how to estimate without probing?
  • location of client should be known by client
  • database for IP-to-geographic location mapping for servers
• study
  • location of monitors known and fixed
  • location of destination received from IPMapper commerical geographic mapping tool (See: www.ipmapper.com)

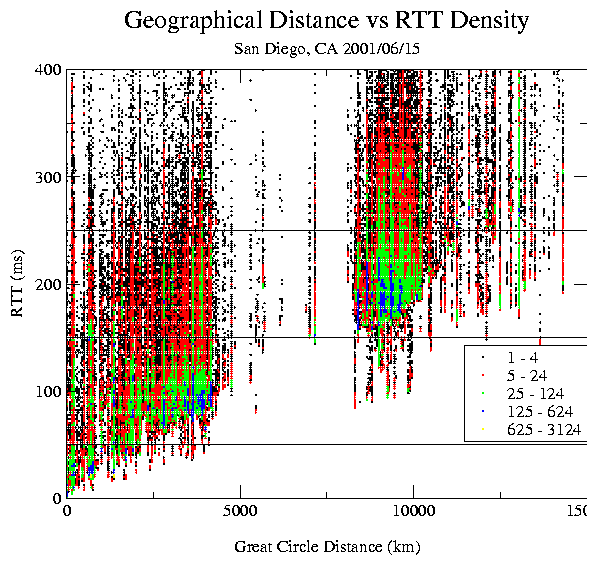

geographic distance and RTT

• three clusters of high density on both RTT and geography
• West Coast, East Coast. Europe/Asia

median RTT

• median RTT from sample of the previous day
• how to estimate without probing?
  • requires the client to continuously monitor all servers
  • generates much unnecessary traffic
• study
  • same

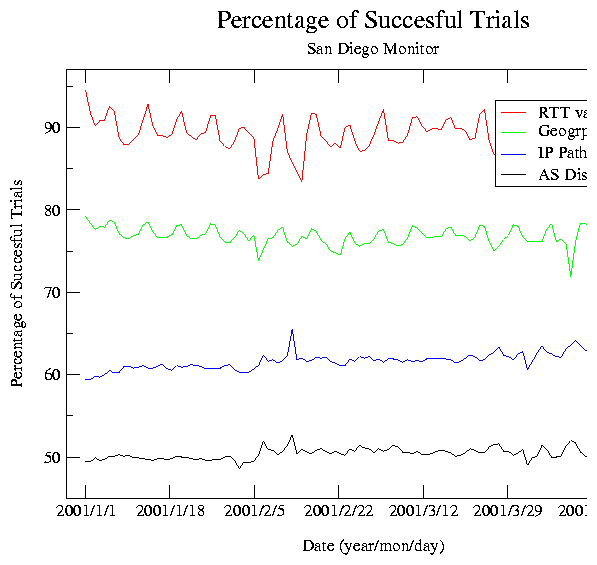

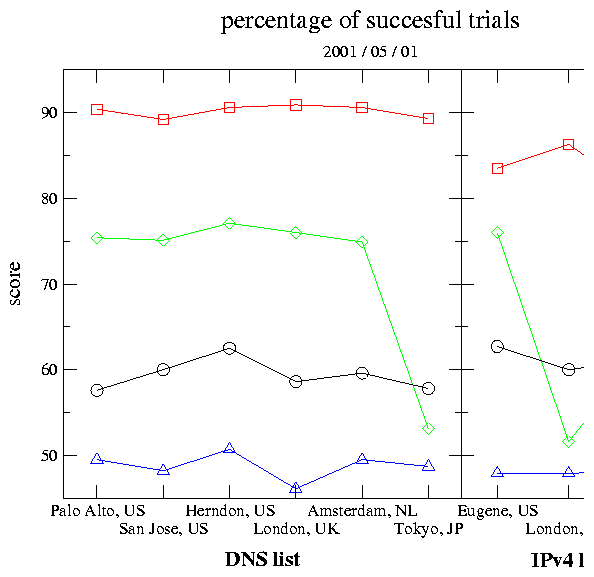

percentage of successful trials

• RTT median unsurprising; provides over 90% success rate
• geographic distance provides 75% success within the US, but only two of the five non-US monitors achieved this
• IP path length is a little better then random
• AS path length is only as good as random

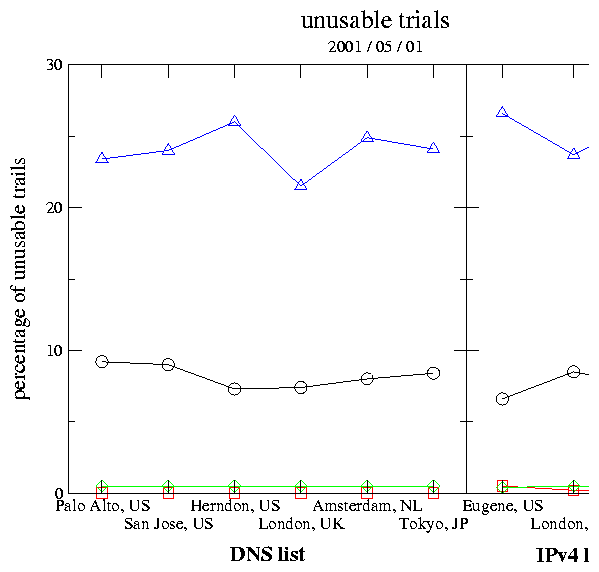

percentage of unusable trials

• AS path length has a large percentage of unusable trials due to tightness of AS path length's distribution
• even for those trials where AS path length was useful as a differentiating metric, it was no better than 60%

stability of results

• all metrics highly stable, with only minor local fluctuation
• IP path length, AS path length, geographic distance, median RTT

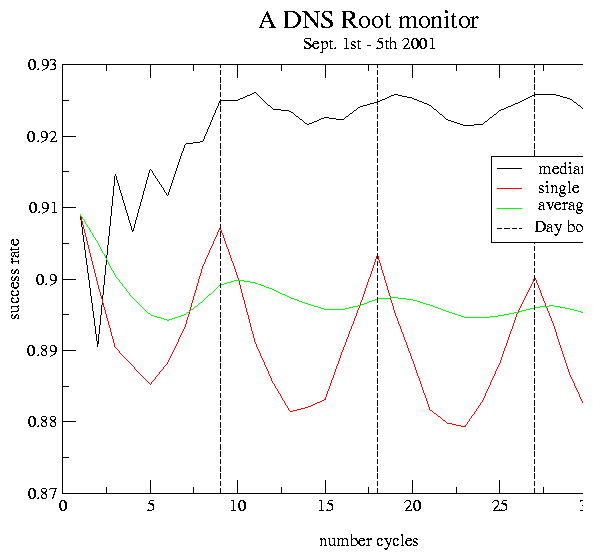

RTT accumulation

• success rate of each metric as number of cycles increases
• median enjoys greatest success up to 24 hour period
• taking a single RTT value near the current time of day is more effective than averaging all values in between
• storing RTT over a 24 hour period is not helpful for use in median calculation

unusual metrics

• 1st-to-3rd quartile average, average across the values within the 1st and 3rd quartile
• median group, only uses the traces taken 6 hours either side of the current time of day

conclusions

• geography provides a reasonable indicator of low RTT within the US, no probing of (zero cost to) network
• AS path length is easy to collect but not statistically useful
• when calculating median, storing RTT over a 24 hour period is not helpful
