Streams, Flows and Torrents
Nevil Brownlee, (CAIDA / The University of Auckland)
and Margaret Murray (CAIDA)
PAM2001 Workshop, April 2001
- Overview
- Introduction: Flows, RTFM, NeTraMet
- Flows, Streams, NeTraMet implementation
- Meter Data Structures
- Timeout Algorithms
- Rulesets, Packet Matching
- Example: DNS Rersponse Time Distributions
- Conclusion
- Torrents, Flows, RTFM, NeTraMet
- Traffic Measurement
- Active, using probe packets. Requires careful design so as not to perturb the network
- Passive, using trace files. A large-scale data analysis problem
- Passive, using real-time data reduction
- RTFM
- Flows are bi-directional
- Flows specified by end-point attributes
- Meters - gather flow data
- Meter Readers - collect flow data
- Managers - configure meters and meter readers
- Flows of interest (and data reduction) specified by Rulesets, written in SRL
- NeTraMet: an open-source implementation of RTFM
- Streams and Flows
- Torrent = sum of all flows on a link
- Flow was defined above
- elephants = flows carrying lots of traffic for a long time
- mice = flows carrying small amounts of traffic
- Stream = bi-directional IP microflow
- Streams are individual IP sessions, i.e. 5-tuples
- A flow can comprise few or many streams

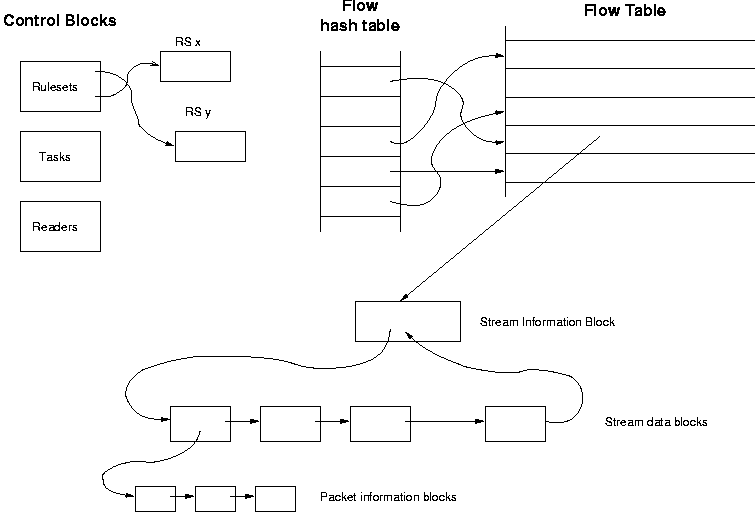

- NeTraMet implementation: Data Structures
- Control Blocks provide RMON-style control of the meter
- Flow Table stores data about flows. Accessed via Flow Hash Table
- Stream data accessed via Stream Info Block (minimises overhead for flows which don't use streams
- Stream data blocks chain streams together for each flow
- Each stream may maintain a queue of data for packet pair matching
- Timeout Algorithms
- For flows, RFC 2720 specifies fixed InactivityTimeout
- Streams are often of short duration
- TCP streams have session state, UDP and ICMP don't
- NeTraMet uses dynamic timeouts for streams

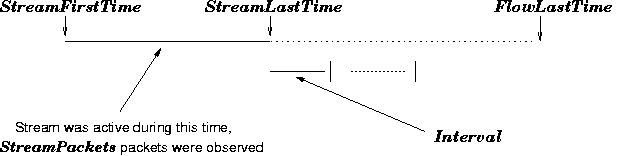

- Stream Timeout Algorithm has two parameters
- FixedTime: stream can't be timed out before this
- TimeMultiplier: specifies minimum space/mark ratio for active streams
- NeTraMet uses FixedTime = 5s and TimeMultiplier = 20x
- Note that any dynamic timeout scheme must make assumptions about stream behaviour
- Rulesets, Packet Matching
- A ruleset configures an RTFM meter to gather flow data. It must
- Specify flows of interest
- Determine each flow's direction (which endpoint is the source?)
- Specify each flow's address granularity
- Specify any required data reduction, e.g. computed or distribution-valued attributes to be saved
- Example ruleset (in SRL) builds Flow Lifetime distributions for streams to web servers
- It creates two flows:
- FlowKind 1: Server is outside our HOME network
- FlowKind 2: Server is inside HOME network
if SourceTransType == TCP save; else ignore; # Only interested in TCP flows if SourcePeerAddress == HOME { if DestTransAddress == WWW store FlowKind := 1; # Server outside HOME else if SourceTransAddress == WWW store FlowKind := 2; # Server inside HOME save FlowTime = 50.0.0!0 & 2.4.1!12000; # 50 buckets, log transform, 10**4 scale factor # => buckets from 10 ms to 120 s count; } - Avoiding Ambiguity in Rulesets
- Above ruleset is ambiguous, i.e. packets in each direction of a stream could belong to two different flows
- Streams with one endpoint inside HOME and the other outside work as expected
- Streams with both ends inside HOME are ambiguous:
- HOME.1 port 12345 -> HOME.2 port 80 sets FLowKind 1
- HOME.2 port 80 -> HOME.1 port 12345 sets FlowKind 2
- But FlowKind is used by the meter as an address attribute, i.e. as part of the flow's address hash
- The meter will create two (uniderectional) flows!
- The ruleset is easily modified to remove the ambiguity:
if SourcePeerAddress == HOME { if DestPeerAddress == HOME store FlowKind := 3; # Host, Server both HOME else if DestTransAddress == WWW store FlowKind := 1; # Server outside HOME else if SourceTransAddress == WWW store FlowKind := 2; # Server inside HOME save FlowTime = 50.0.0!0 & 2.4.1!12000; # 50 buckets, log transform, 10**4 scale factor # => buckets from 10 ms to 120 s count; } - Stream Distributions Example: DNS Response Times
- TurnaroundTimes - as specified in RFC 2724 - use packet pair matching of request and response packets
- We use this to observe behaviour of global DNS servers, both root and gTLD
- This work is described elsewhere, we present only a brief summary here
- We have installed a NeTraMet meter at UCSD, monitoring traffic between three UCSD netblocks and the Internet
- The following is an overview of the ruleset which collects our DNS TurnarondTime data:

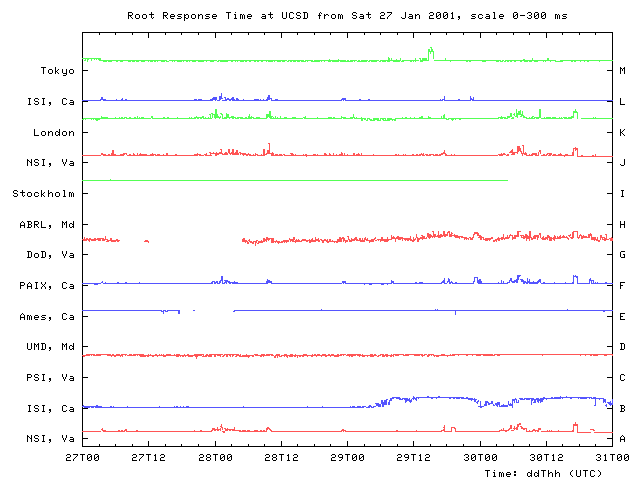

if SourcePeerType == IPv4 save; else ignore; # Not IP if SourceTransType == UDP save; else ignore; # Not UDP TestDestAddress; # Sets FlowKind if FlowKind == 0 nomatch; # Not root server else { if DestTransAddress == DNS save; else ignore; # Dest not DNS port save ToTurnaroundTime = 50.11.0!0 & 2.3.7!700; # 50 buckets, log transform, 10**3 scale factor # => buckets from 7 ms to 700 ms count; } - Root response time
Medians of 5-minute distributions. Filtered: at least 10 requests per 5-min interval- Most roots have steady response times, with short bursts of slower response
- A, F, J, K and L show many of the same bursts; indicating a common route
- B behaved well during the weekend, but badly on Monday and Tuesday, suggesting a server performance problem
- Hour-long step at 30T18 is common to A, F, G, J and K. The paths to these go via CERFnet, suggesting a denial of service attack on our CERFnet link

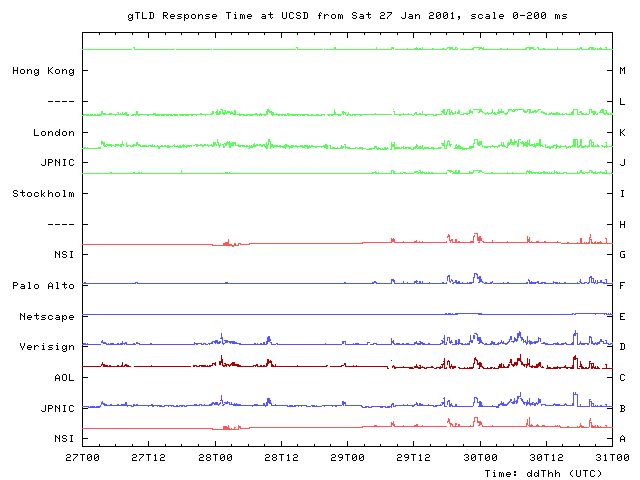

- gTLD response time
Medians of 5-minute distributions. Filtered: at least 10 requests per 5-min interval- Generally better-behaved than the roots
- B, C and D shared the step at 30T18
- Similar step at 29T23 was common to all gTLDs, suggesting an attack on the UCSD-SDSC link
- Steps for A and G at 2903 indicate a routing change for one or more links in common to those servers
- Conclusion
- Streams, Flows and Torrents provide a useful taxonomy for network traffic. Bi-directional streams are required for TurnaroundTime measurements; they fit naturally within the RTFM architecture
- NeTraMet implements stream-related attributes in ways which don't impose penalties on rulesets which don't use streams
- NeTraMet's dynamic timeout algorithm for streams works well, largely because most streams are very short-lived. Any dynamic timeout algorithm must make assumptions about the temporal behaviour of streams
- Strip charts for the root and gTLD servers provide a good indication of Internet performance on the paths to them. They are produced using passive measurements from a single point
Last updated: 14 April 2001
