overview

• server selection problem

• data used in this study

• distance metrics

• metric success rates

• conclusions


server selection

• Many Internet services are provided by multiple servers.

• Clients want to select a server that optimizes their access to
  a given service.

• Possible optimizations:
  server load, available bandwidth, loss rate, transit time.

• We will look at the problem of optimizing minimum transit time
  or Round Trip Time (RTT).

Approach for selecting minimum RTT

• A common solution to this problem is a selection system
  which is local to a client and can do the selection for it.

• This system requires a metric of distance in order to sort
  the list of potential servers.

• We will present four metrics which represent the distance between
  two nodes on the Internet.


study background

• data: CAIDA Macroscopic Topology Project


  • IP forward path topology and RTT
  • Collected at 9 monitors around the world.
  • Continuously monitors many thousands of destinations

• methodology: success rate

• br Providing a single value which represents the rate
• br at which a metric successfully predicts low RTT.


data: CAIDA Macroscopic Topology Project

• monitors

  • trace
  • br forward IP path and RTT between monitor and destination
  • cycle
  • br a single run through the destination list
• destination lists

  • DNS clients

    • one DNS client per routable prefix
    • 8 to 14 cycles per day
    • 58,000 destinations
  • IPv4 list

    • one IP address per /24 in routable prefix
    • 1 cycle per day
    • 300,000 destinations

methodology: success rate

• For each pair of traces we compare RTTs and the metrics.


  • lower metric & lower RTT = success

  • lower metric & higher RTT = failure

  • equal metric = useless

  • brbr RTTs are never equal.

• For each metric, we count the total number of success, failure,
  and useless trials.

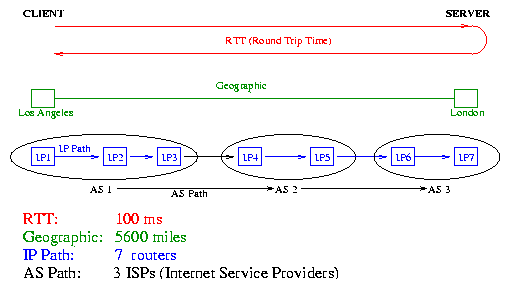

distance metrics

metrics

• IP path Length (number of IP)
• br The number of routers, represented by their IP address.
• AS path length (number of AS)
• br The number of ISPs, represented by their AS.
• geographic distance (km)
• br The great circle distance from client to the server.
• median RTT (ms)
• br The median RTT sampled from midnight GMT to midnight
• br GMT on the previous day.

metric description

• possible deployable system
• br A system which could be created to provide user end
  access to a given metric.

• our approximation
• br Method used to estimate a given metric in our study.


IP path length

• possible deployable system

  • Shortest path found between client and server in a IP graph.
  • This IP graph can be built by a remote system and shared
    between multiple distance resolvers.
• our approximation

  • The actual forward IP path seen in the Internet.

AS path length

• possible deployable system

  • AS paths can be collected from the Border Gateway Protocol
    (BGP) annoucements.
  • This information is already distributed by the Internet routers
    and so would not introduce additional traffic to the network.
• our approximation

  • We could not collect BGP data for all our monitors.
  • So we converted our IP paths to AS paths using information collected by Oregon's Routeviews Project (www.routeviews.org).

geographic distance

• possible deployable system

  • A service that knows geographic location of IP address can
    be used to find the location of servers.
  • The location of the client should already be known (or can be
    retrieved from the same geographic service).
  • Then the distance between these two points can be calculated.
• our approximation

  • The location of the skitter monitors is already known.
  • We used a commercial geographic service IxMapper to find
    geographic location.

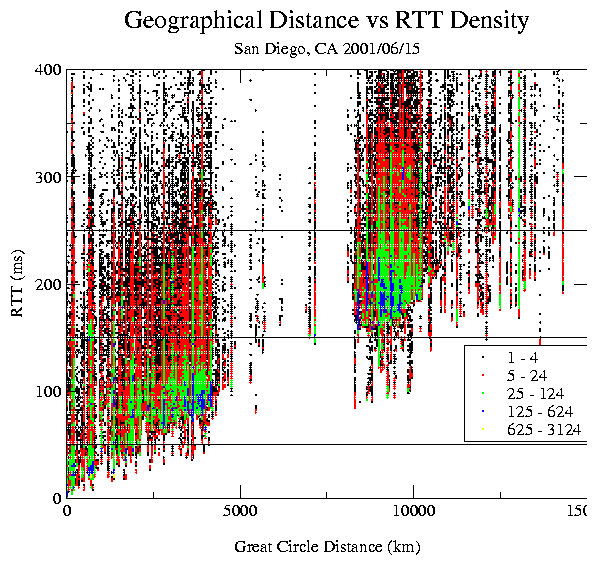

geographic distance and RTT

• three clusters of high density on both RTT and geography
• West Coast, East Coast. Europe/Asia

median RTT

• median RTT from sample of the previous day
• possible deployable system

  • Set of monitors which systematically sample possible client RTT.
  • This monitoring increases traffic on the network.
  • Due to high variability in RTT values previous values can not
    specifically predict the next RTT value.
• our approximation

  • We used our sampled data from the previous day and calculated
    median value from these samples.

percentage of successful trials

• RTT median provides over 90% success rate
• geographic distance provides 75% success within the US,
  but only two of the five non-US monitors achieved this
• IP path length is a little better then random
• AS path length is only as good as random

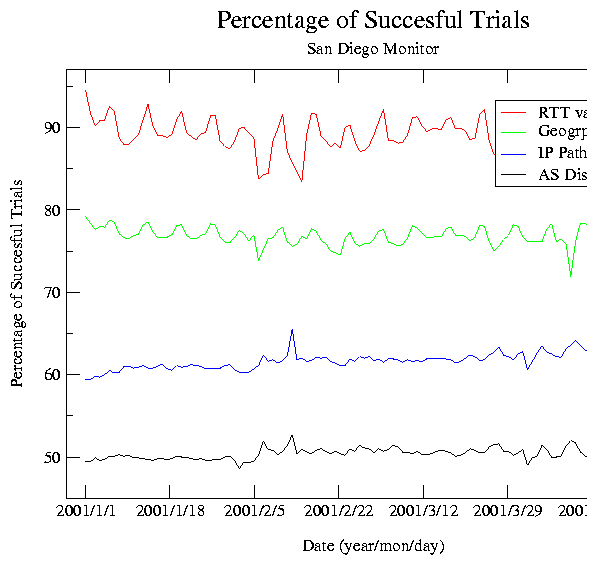

stability of results

• all metrics highly stable, with only minor local fluctuation
• br IP path length, AS path length, geographic distance, median RTT

RTT based metrics

• median RTT
• br the value in the middle of the sorted list of values
• single value RTT
• br a single RTT value previously observed
• average RTT
• br the sum of all values divided by the number of values

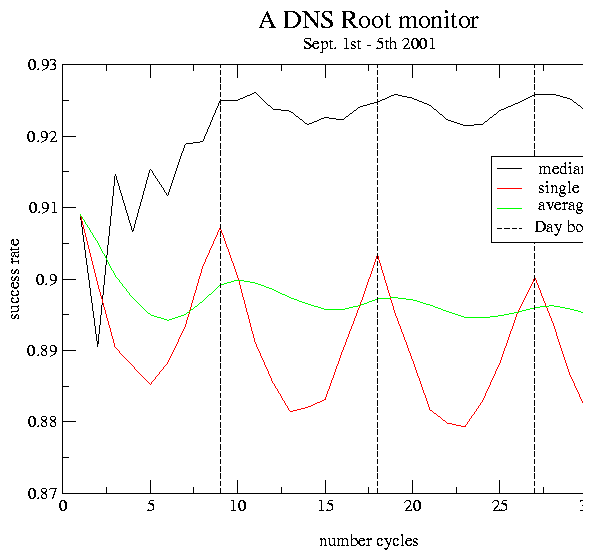

RTT accumulation

• the success rate of RTT metrics as number of cycles increases
• median has the greatest success up to 24 hour period
• taking a single RTT value near the current time of day
  is more effective than averaging all values in between
• storing RTT over a 24 hour period does not improve the
  success rate of the median RTT metric

conclusions

• RTT based metrics provide a high success rate for server ranking.

  • No more then 24 hours of data should be collected.
  • The success rate is better then the next best even
    when a single RTT value is used.
  • But these are hard to collect.

• Geography provides a reasonable indicator of low RTT within the US.

  • This can be done at no cost to the network.

• AS Path length has no predictive power when selecting low RTT.
